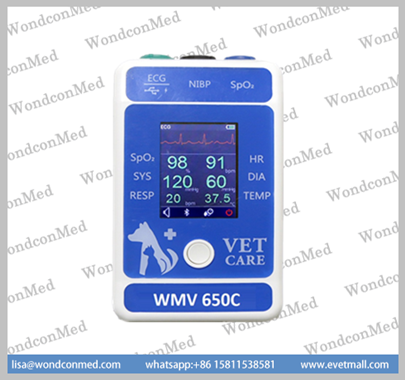

Description of Wondcon WMV 650C Veterinary Patient Monitor
DETAILS
Accuracy and durability, portable, competitive price!
Features:
● 2.4 inch TFT LCD,display parameters and waveform.
● 1800mA lithium battery inside, 12 hours continuous work.
● Lightweight,portable design and user-friendly interface
● Only one button, easy to operate.
● Through serial port, USB or Bluetooth, the data can be transfer to PC or other smart
devices.
● Widely used in types of surgery in the pet emergency centers
● 12 months warranty
Bluetooth connection
Pad or mobile display real-time data
Alarm alert
Compatible Wondcon monitor
SPECIFICATION
Operation system
Android
Working voltage
D.C.2.32-D.C.3.4V
SpO2
Detection scope: 35%-100%
Accuracy: ±2% 80%-100%
Operation environment
Temperature: 5℃ - 40℃
Relative humidity: 15% - 80%
Air pressure: 860hPa - 1060hPa
Pulse Rate
Rage:25-250BPM
Accuracy:±2bpm
Resolution:1bpm
Delivery time
Samples: about 2 days
Mass production(2000pieces): about 15 days
OEM: about 25 days
Bluetooth
Bluetooth BLE
Size
145mm x 85mm x 37mm
Battery Type
3.7V, 1800mAh lithium battery
Weight
240g ±1g
Display
2.4 inch color TFT LCD
APP
GooglePlay:Search “Monitor ”
ECG
Waveform: Lead I
Band width 0.05Hz-100Hz(3dB) diagnose mode
Resp
Chest impedance method
Scope: 0 bpm to 100bpm
Temp
Type: Vascular/surface
temperature Scope: 20℃-50℃
NIBP
Systolic blood pressure: 4kPa-34kPa(30-255mmHg)
Diastolic pressure: 2kPa-29.3kPa(15-220mmHg)
Mean pressure: 2.7kPa-31.3kPa(20-235mmHg)
Heart rate
Scope: 15bpm to 300bpm
AC adapter
Input: AC100-240v-200mA
Output: DC 5V 1A
STANDARD CONFIGURATION
SPO2+NIBP+PR+ECG+RESP+Temp
BCI vet ear clip sensor
1-5# Animal disposable NIBPP Cuff
Universal vet EGG adapter
NIBP tube
2.25k Animal body sensor
